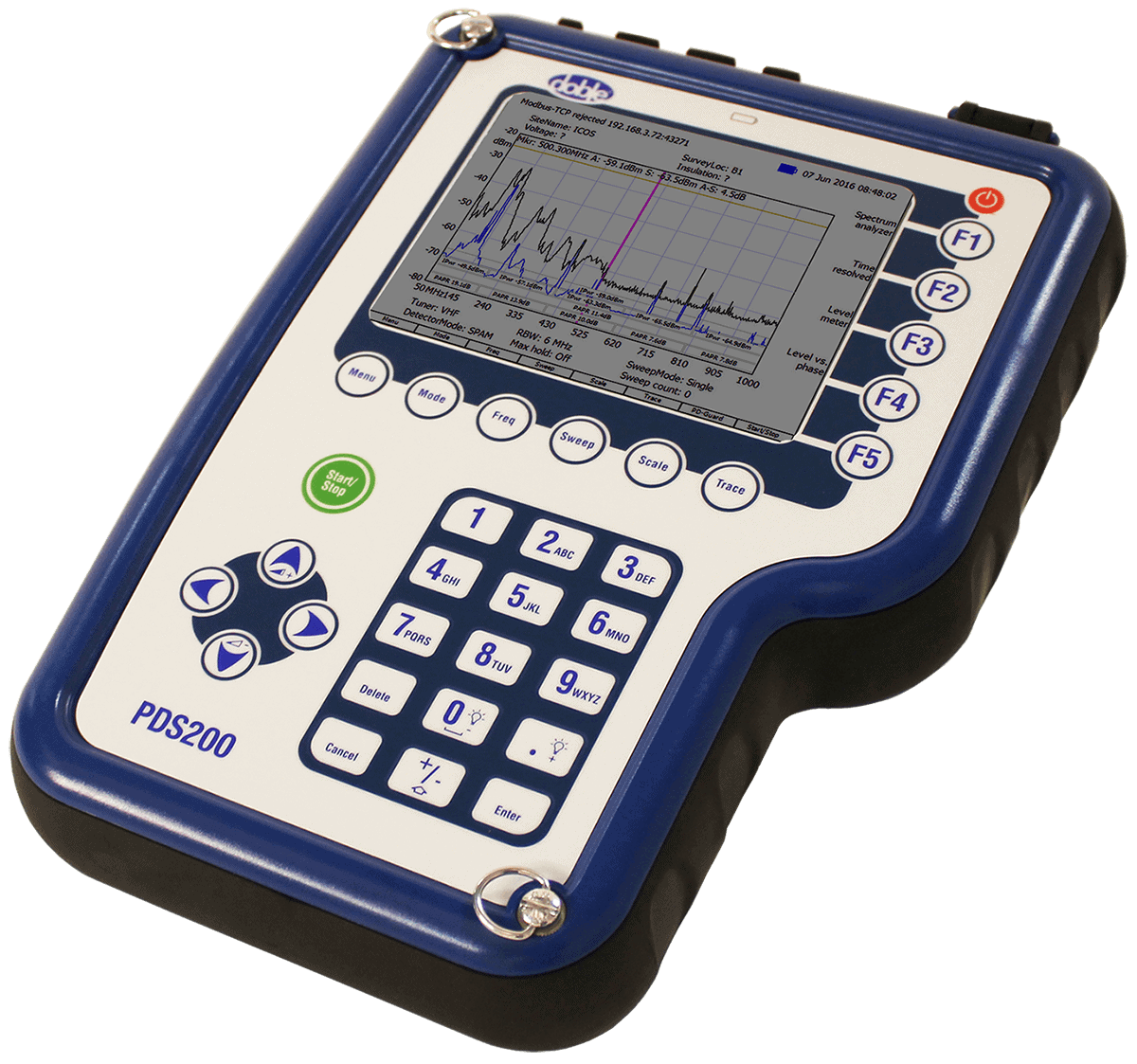

  • Easy to use, handheld device with large display screen
  • Captures the electromagnetic emissions in the RFI and EMI spectrum and displays a “fingerprint” of the defect causing the radiation
  • Select measurement parameters to maximize sensitivity to emissions
  • Synchronize signal capture to the power cycle to facilitate phase resolved PD analysis
  • Connect to a variety of sensors (HFCTs, probes, directional antenna) for different applications
  • Synchronous sampling and display of detector outputs provides discrimination of telecommunication carriers, noise and discharge phenomena
  • Logging of key parameters for trending of emissions
  • Quickly perform surveys without costly outages
  • No physical connections to the unit under test; detection method is truly non-invasive
  • Safe, effective method to detect insulation and mechanical defects
  • Immediate trending of measurements
  • Record and analyze the emissions to make decisions for further actions

PDViewer Software

PDViewer Software

  • Use the PDViewer software on your computer to view and edit the survey files created on your handheld PD tools
  • PD spectra and time resolved plots can be displayed, overlaid and compared in a simple user interface
  • Examine RFI and acoustic data; overlay or compare multiple traces side-by-side
  • Registered users can download the latest PDViewer software and documentation
