WRM-10P S2
10 A single-phase winding resistance meter

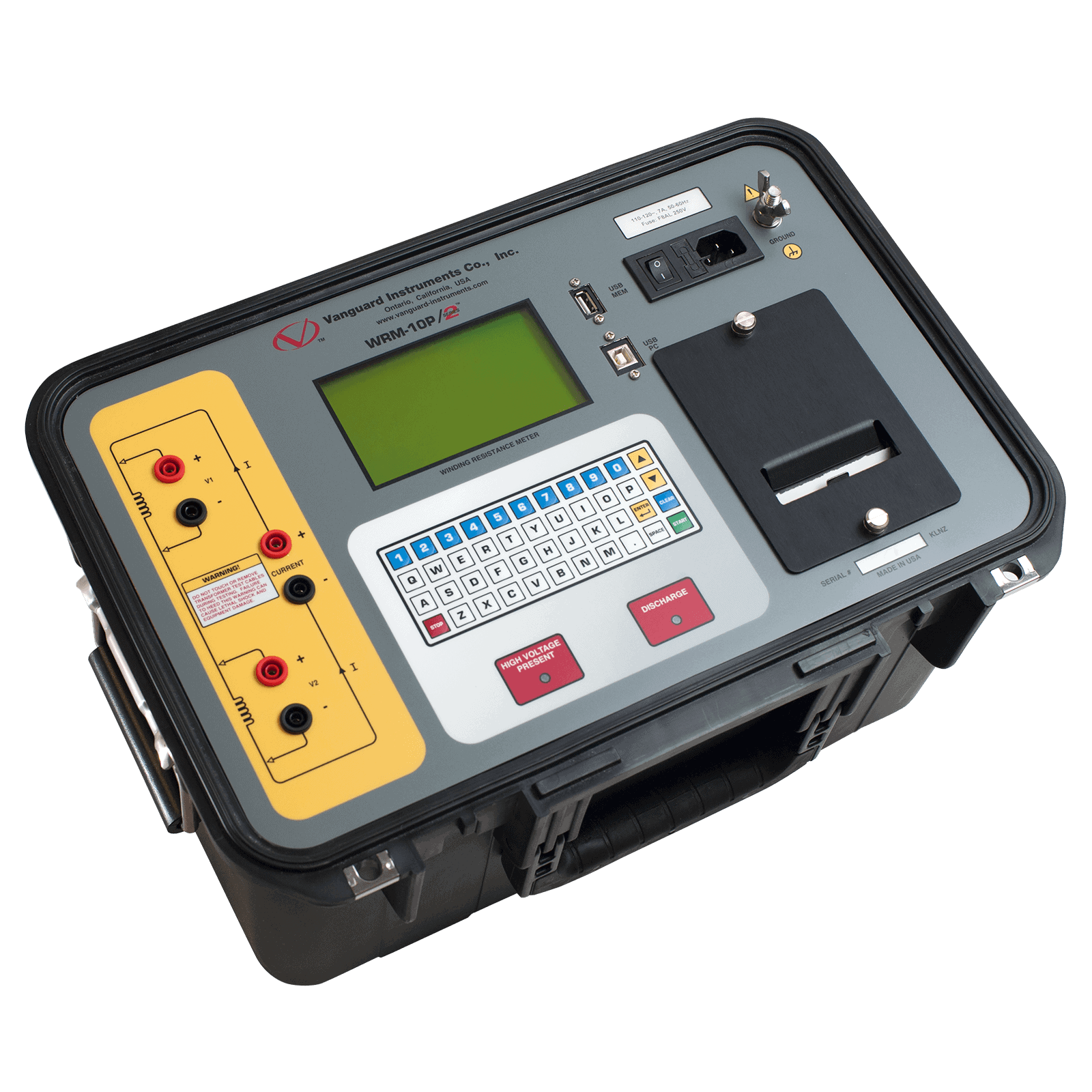

The WRM-10P S2 is Vanguard's second generation lightweight winding resistance meter designed to accurately measure the winding resistance of highly inductive power transformers. The unit’s dual resistance-reading input channels can measure two winding resistances simultaneously, and four-wire (Kelvin) connections provide high accuracy and require no lead compensation. The WRM-10P S2 provides stable resistance readings of very large transformers by utilizing a 36Vdc power supply capable of outputting up to 10 Amperes. The resistance reading of a 100MVA transformer can be achieved in 5 minutes or less. The unit’s power supply is cooled by heavy-duty fans designed for continuous operation. For greater flexibility in the field, the WRM-10P S2 comes with a built-in 2.5″ wide thermal printer used for printing test reports.
Cable | Part Number |
---|---|
[8000-0005] USB Cable [ 6′ (1.83m) ] | 8000-0005 |
[8000-0016] Power + Ground Combination Cable | 8000-0016 |
[8000-0083] V2 Sense Cable [ 50′ (15.24m) ] | 8000-0083 |

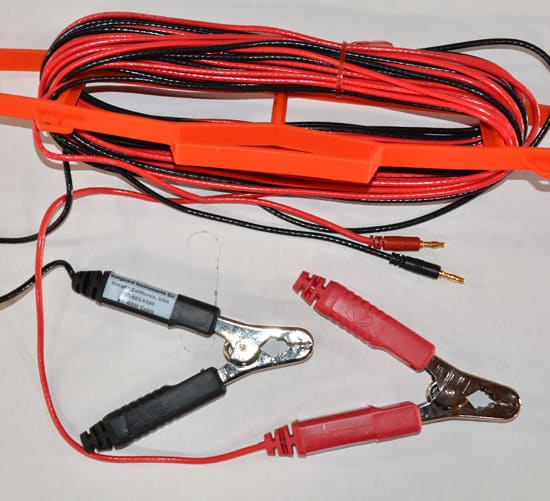

[8000-0084] DC Current Cable (I) [ 50′ (15.24m) ] | 8000-0084 |
[8000-0087] V1 Sense Cable [ 50′ (15.24m) ] | 8000-0087 |
TYPE | Portable transformer winding resistance meter |
PHYSICAL SPECIFICATIONS | Dimensions: 17.5”W x 11.75”H x 12.5”D (44.5 cm x 29.8 cm x 31.8 cm) Weight: 27 lbs (12.2 kg) |
INPUT POWER | 100 – 120 Vac or 200 – 240 Vac (factory pre-set), 50/60 Hz |
RESISTANCE READING RANGE | 1 micro-ohm – 2,000 ohms |
ACCURACY | 1 – 19,999 micro-ohms: ±0.5% reading, ±1 count; 20 – 999 milli-ohms: ±1% reading, ±1 count; 1 – 2,000 ohms: ±1.5% reading, ±1 count |
TEST VOLTAGE | 36 Vdc max |
TEST CURRENT RANGE | Auto range, 10 Amperes max |
DISPLAY | 5″ back-lit LCD screen (240 x 128 pixels) viewable in bright sunlight and low-light levels |
PRINTER | 2.5-inch wide built-in thermal printer |
KEYPAD | Rugged “QWERTY”-style membrane keypad |
INTERNAL TEST RECORD STORAGE | Stores 100 test records of 64 readings each |
COMPUTER INTERFACES | USB PC, USB Flash drive |
PC SOFTWARE | Windows®-based software is included with purchase price |
SAFETY | Designed to meet IEC61010 (1995), UL61010A-1, CSA-C22.2 standards |
TEMPERATURE | Operating: -10˚C to 50˚ C (15˚F to +122˚ F) Storage: -30˚ C to 70˚ C (-22˚F to +158˚ F) |
HUMIDITY | 90% RH @ 40°C (104°F), non-condensing |
ALTITUDE | 2,000 m (6,562 ft) to full safety specifications |
CABLES | Three 50-foot (15.24m) test cables, one ground cable, one power cord, one USB cable and cable carrying bag |
OPTIONS | Shipping Case |
WARRANTY | One year on parts and labor |
Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). Last updated on February 16, 2009 |
