15-200 kV Field and Laboratory AC Dielectric Test Sets
Suitable for dielectric testing a wide range of electrical apparatus
Suitable for dielectric testing a wide range of electrical apparatus

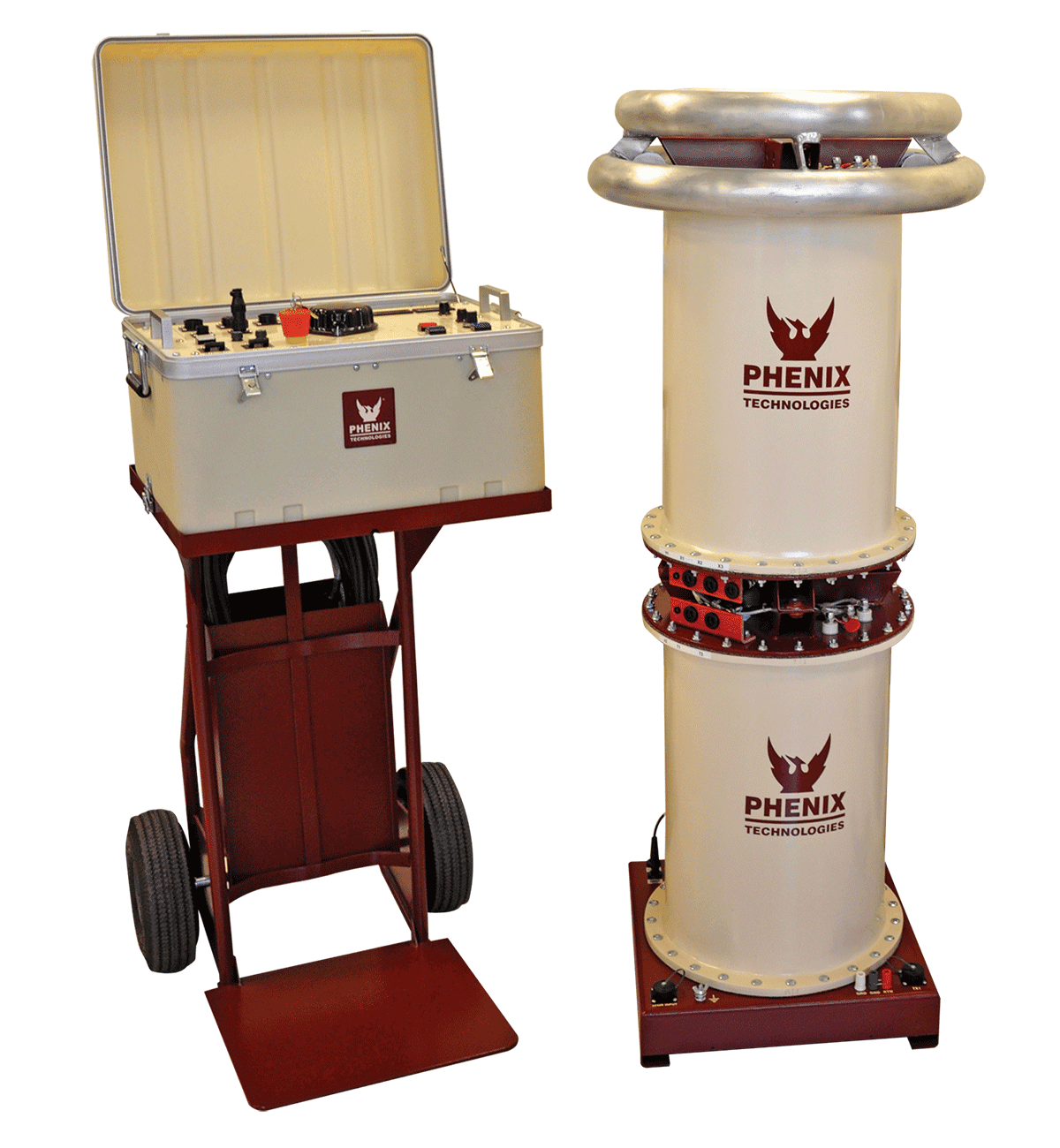

This portable rugged line of AC high voltage test equipment is ideally suited for use in the field or in the laboratory. The 6CP and 6CB line offers a complete test system in a mobile package. All units use a combination control and regulator enclosure and a separate high voltage section.
OVERVIEW
Description
- The 6CP system is equipped with advanced digital metering, and control and protection devices which are easy to use and provide the operator with all necessary information to safely operate the system.
- The 6CB system is equipped with a 7” Full-Color TouchScreen display with auto-ranging voltage and current meters plus many other additional features.
- The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage transformer characterized by use of an isolating cylindrical housing mounted on a rugged steel base. The high voltage output is equipped with a corona free aluminum shielding electrode. The high quality design and construction is key to the superior partial discharge performance of the 6CP and 6CB line.
DESIGN & SAFETY FEATURES
|
“6CP” Models
|
“6CB” Models
|
| HMI displays metering, various controls, and system messages
|
OPTIONS & ACCESSORIES
Accessories Included
- User guide
- Calibration Certificate
Options
- Flashing Light, Mounted or Stand-alone
- Flashing Light, Mounted, Telescoping Pole
- Flashing Light with Security Circuit, magnetic base
- Red/Green Light, Folding Base, Security Circuit, E-stop, 20’ Cable
- PD Test Certification
- ISO17025 Calibration
- Safety Foot Switch with 20’ (6 m) lead
- Low Voltage Line Filters
- Safety Hand Switch with 10’ (3 m) lead
- Ground Stick
- Vinyl Cover
- Hand cart for 30 kV & 50 kV models
- Upgrade to Heavy-duty Cart
- Aluminum Transformer Cover
- Lift Kit for HV Tank
- Windows software for connection to PC (For “B” models Only)
ENVIRONMENTAL
Environmental Operating Conditions
- 10-40°C, indoor/outdoor in fair weather
- Humidity <95% non-condensing
- Altitude <3300 ft (1000 meters)
