OVERVIEW

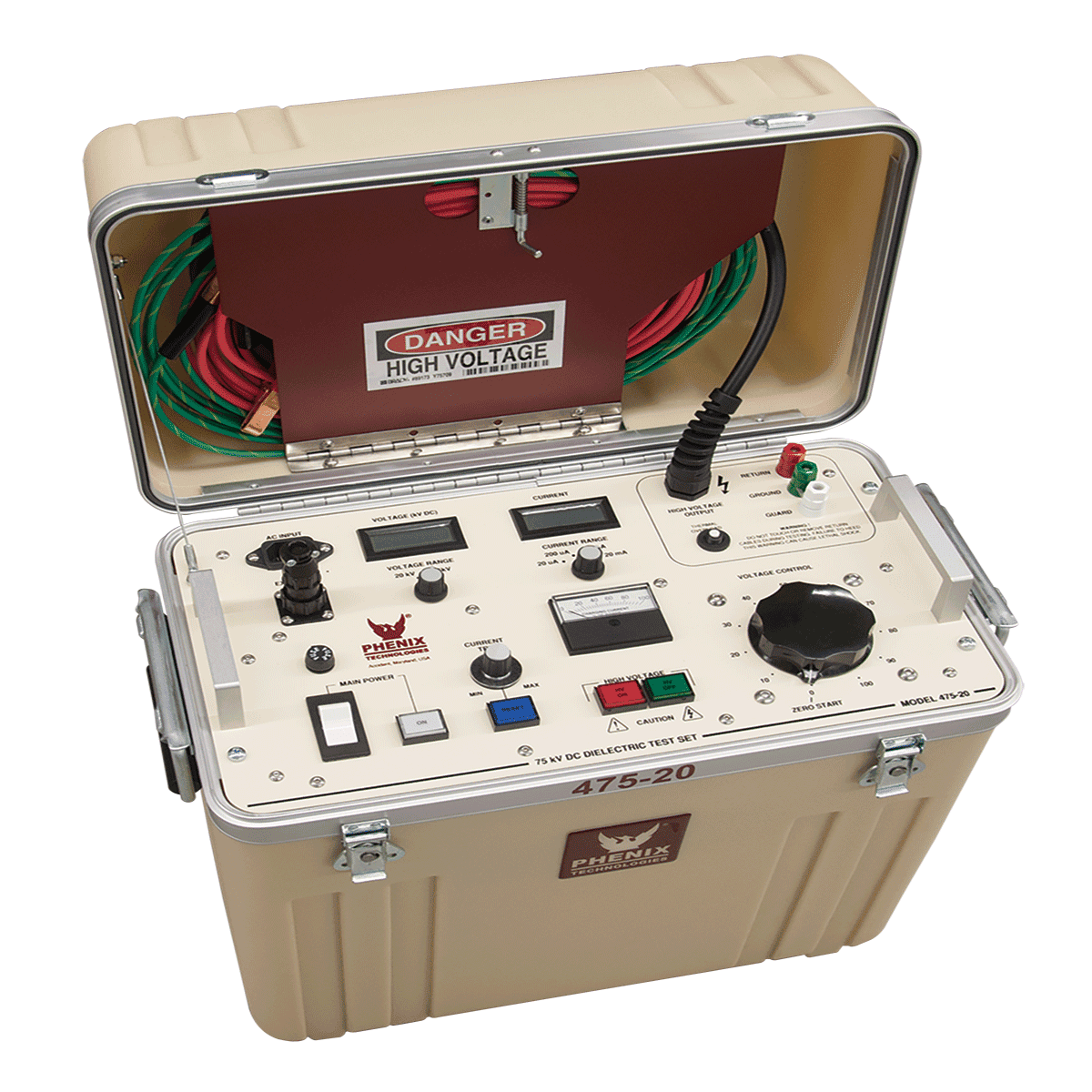

- Phenix Technologies offers a line of portable 40-200 kV DC Hipots with many advanced features.
- The high voltage is generated by a filtered high voltage doubler circuit, that is purpose built by Phenix for the exacting demand of high voltage testing.
- A solenoid operated discharge switch quickly discharges the load after testing. All high voltage components are housed in an oil filled aluminum sealed grounded dead tank. A shielded high voltage lead allows the operator to safely connect the high voltage output to the test object. The high mA charging current, which is standard with all Phenix DC Hipots allows the operator to quickly and efficiently charge large capacitive loads.
DESIGN & SAFETY FEATURES
Standard Series – Design & Safety Features
- Main power circuit breaker switch (with indicator)
- External warning circuit provision for safety devices such as flashing light
- High Voltage ON/OFF pushbuttons with indicators
- Manual control of output voltage
- Zero Start interlock
- External interlock provision
- Overload circuit adjustable from 10% to 110% of rated current
- Output overload indicator with reset button
- Slow and fast acting transient protection on all meters and relays
- Built-in discharge circuit
- Very low ripple, <2% RMS at full output
- 3 ½ digit, multi-range metering
- Analog charging currentmeter
- Guard mode for accurate current measurements
- Thermal resettable overload protecting high voltage transformer primary circuits
“B” Models – Design & Safety Features
- Main power circuit breaker switch
- External warning circuit provision for safety devices such as flashing light
- High Voltage ON/OFF buttons with indicators
- Emergency Off pushbutton (Locking)
- Automatic voltage control or manual voltage control via infinity dial
- USB port for data acquisition via USB drive
- WiFi control from PC (Requires optional software)
- Auto-ranging meters for total current and specimen return current
- Return lead safety locking retention clip
- Shielded test current measurement lead
- Built-in discharge circuit
- Very low ripple, <2% RMS at full output
- 7” Full-color touch-screen display
HMI displays metering, various controls, and system messages
- Breakdown memory voltmeter
- Maximum voltage reached memory voltmeter
- Duration and Dwell timers
- Zero Start interlock
- Adjustable rate of rise in Volts/seconds
- Adjustable overcurrent trip point
- Output overload indication with reset
- Insulation Resistance calculation
Options
- Positive polarity output
- Custom cable lengths
- Calibration data
- Ground and Discharge Sticks
- Safety Hand Switch with 10’ (3 m) lead
- Safety Foot Switch with 20’ (6 m) lead
- Windows software for connection to PC (For “B” models Only)
- Hand cart (option for models 4120-10, 4160-5)
- Flashing Light, Mounted or Stand-alone
ENVIRONMENTAL
Environmental Operating Conditions
- 10-40°C, indoor/outdoor in fair weather
- Humidity <95% non-condensing
- Altitude <3300 ft (1000 meters)
