CABLES
| Cable | Part Number |
|---|---|
| [8000-0104] Transducer Cable [ 25′ (7.62m) ] | 8000-0104 |
| [8000-0181] Transducer Extension Cable [ 25′ (7.62m) ] | 8000-0181 |
TECHNICAL SPECIFICATIONS
| PHYSICAL SPECIFICATIONS | See datasheet for full dimensions |
| PHYSICAL TRAVEL | 0-1,800 degrees |
| ACCURACY | 0.1% of reading ±0.36 degree |
| RESOLUTION | ±0.36 degree |
| VELOCITY | 100 rev/sec max |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). | |
PART NUMBERS

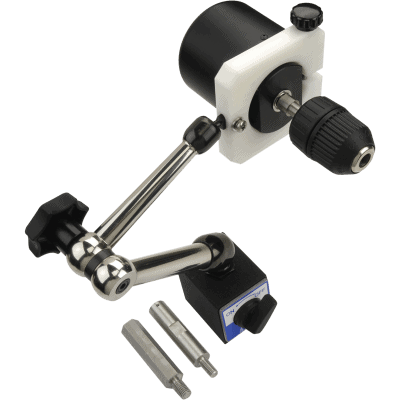

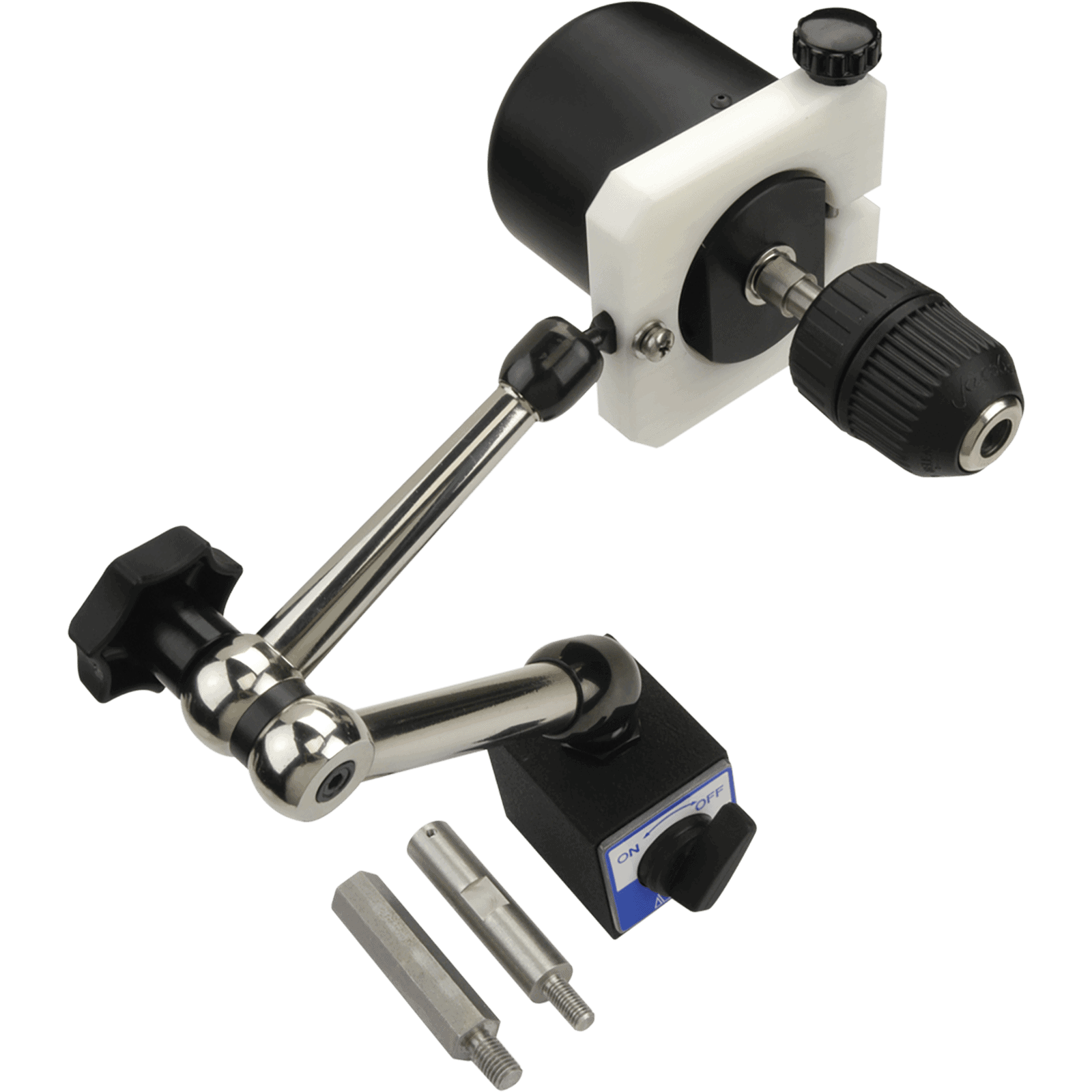

- 9091-UC [Rotary Transducer with Magnetic Mount]
