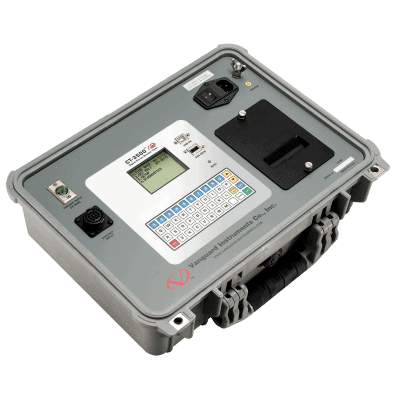

CT-3500 S2
Digital Circuit Breaker Analyzer
The CT-3500 S2 is Vanguard’s second generation, stand-alone, digital, microprocessor-controlled, circuit-breaker timer. It measures the elapsed time from the instant a breaker coil is energized to the instant of opening or closing of a circuit-breaker’s dry contacts. In addition to timing a breaker’s contact response time, the CT-3500 S2 can also time relays or other switching functions that use an initiating trigger voltage (24-300 Volts DC or AC). The timer-triggering voltage starts three independent electronic timers. Each timer is individually stopped by its respective dry-contact closing or opening. The CT-3500 can fully analyze the timing of all circuit breaker operations (Open, Close, Open – Close, and Close – Open). Timing results are displayed in milli-seconds and cycles on the unit’s back-lit LCD screen and can be printed on the built-in 2.5-inch wide thermal printer.
Cable | Part Number |
---|---|
[8000-0005] USB Cable [ 6′ (1.83m) ] | 8000-0005 |
[8000-0016] Power + Ground Combination Cable | 8000-0016 |
[8000-0095] Contact Extension Cable [ 30′ (9.14m) ] | 8000-0095 |
[8000-0096] Contact Test Lead [ 20′ (6.10m) ] | 8000-0096 |

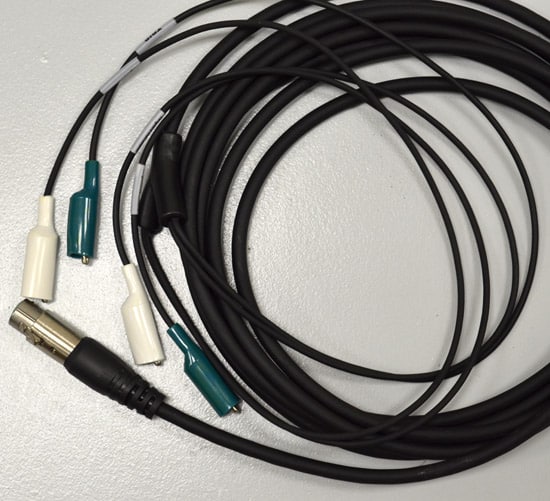

[8000-0098] Trigger Cable [ 15′ (4.57m) ] | 8000-0098 |
TYPE | Portable circuit-breaker analyzer |
PHYSICAL SPECIFICATIONS | 16”W x 7”H x 13” D (40.6 cm x 17.4 cm x 33 cm); Weight: 14 lbs. (6.4 Kg) |
INPUT POWER | 100 – 240 Vac, 50/60 Hz |
DRY-CONTACT INPUTS | 3 channels |
TRIGGER INPUT VOLTAGE | open/close: 24 – 300 V, DC or peak AC |
BREAKER OPERATIONS | Open, Close, Open-Close, Close-Open |
TIMING RESOLUTION | ±0.1 millisecond; accuracy: 0.05% of reading ±0.1 ms |
DISPLAY | back-lit LCD screen (128 x 64 pixels); viewable in bright sunlight and low light conditions |
KEYPAD | rugged, 44-key “QWERTY” membrane keypad |
PRINTER | built-in 2.5-inch wide thermal printer |
INTERNAL TEST RECORD STORAGE | stores up to 128 timing records |
COMPUTER INTERFACE | one USB PC interface, one USB Flash drive interface |
COMPUTER SOFTWARE | Windows® based Breaker Analysis software included with purchase price |
SAFETY | designed to meet IEC61010 (1995), UL61010A-1, CSA-C22.2 standards |
ENVIRONMENT | Operating: -10°C to +50°C (+15°F to +122°F) Storage: -30°C to +70°C (-22°F to +158°F) |
HUMIDITY | 90% RH @ 40°C (104°F) non-condensing |
ALTITUDE | 2,000 m (6,562 ft) to full safety specifications |
CABLES | furnished with full set of test leads (inluding 20-foot contact leads and 30-foot contact lead extensions) |
OPTIONS | transportation case |
WARRANTY | one year on parts and labor |
