Rotary transducers translate the rotary motion of a circuit breaker's linkage shaft to the linear motion of the circuit breaker's main contact.

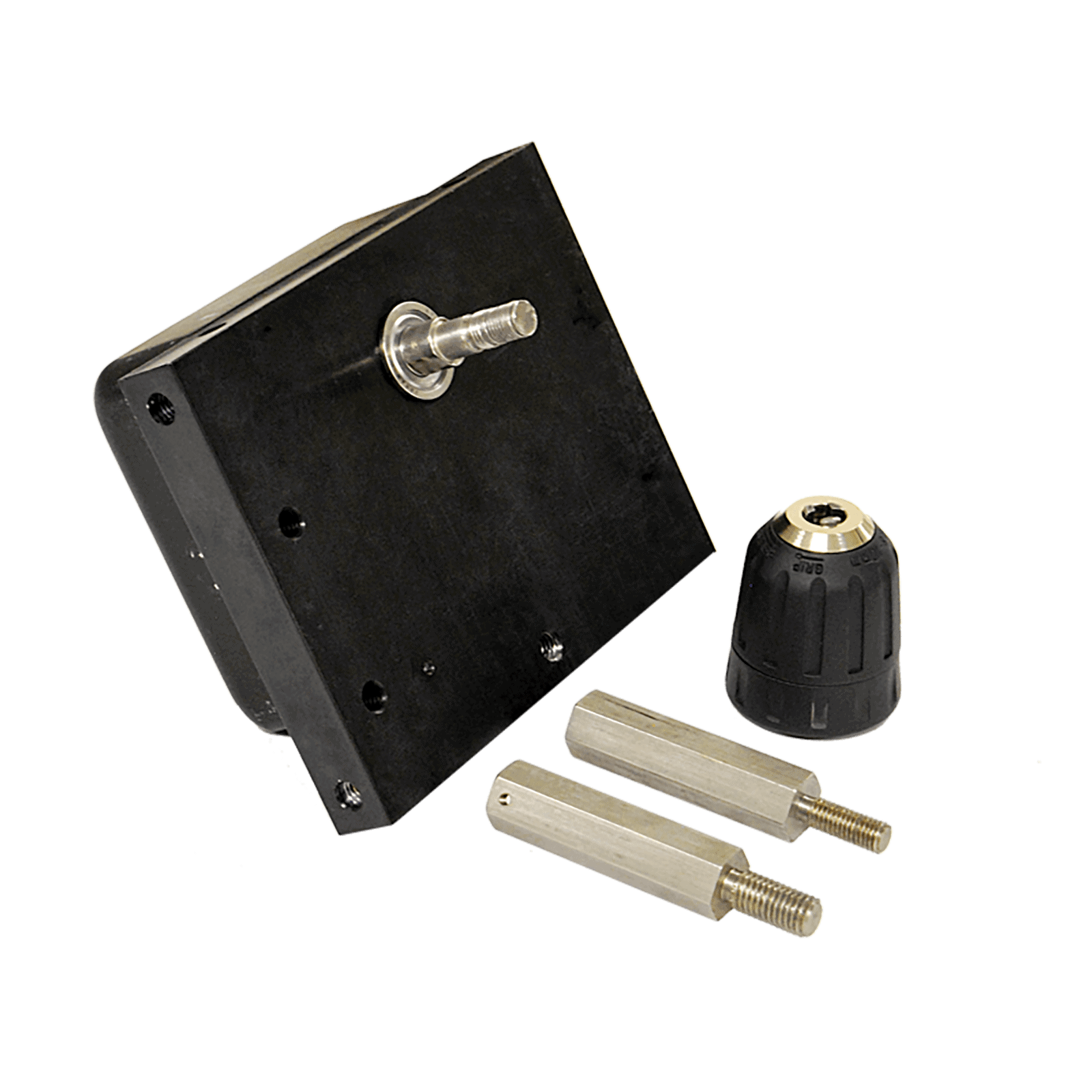

Vanguard rotary transducers employ optical encoders that can detect rotary position with a maximum velocity of 100 revolutions per second. Vanguard offers three rotary transducers, each
of which is furnished with a drill chuck adapter and two adapter shafts with 8mm and 10mm threading, respectively. The included accessories can be used to connect the transducers to a wide range of circuit breakers in the field.
ALL CIRCUIT BREAKER ACCESSORIES
|[8000-0104] Transducer Cable [ 25′ (7.62m) ]||8000-0104|
|[8000-0181] Transducer Extension Cable [ 25′ (7.62m) ]||8000-0181|
|PHYSICAL SPECIFICATIONS||See datasheet for full dimensions|
|PHYSICAL TRAVEL||0-1,800 degrees|
|ACCURACY||0.1% of reading ±0.36 degree|
|VELOCITY||100 rev/sec max|
|Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F).|
- 9090-UC [Rotary Transducer]
