Test Systems for Accelerated Aging of Dielectrics
Accelerate the aging of dielectrics under electrical stress

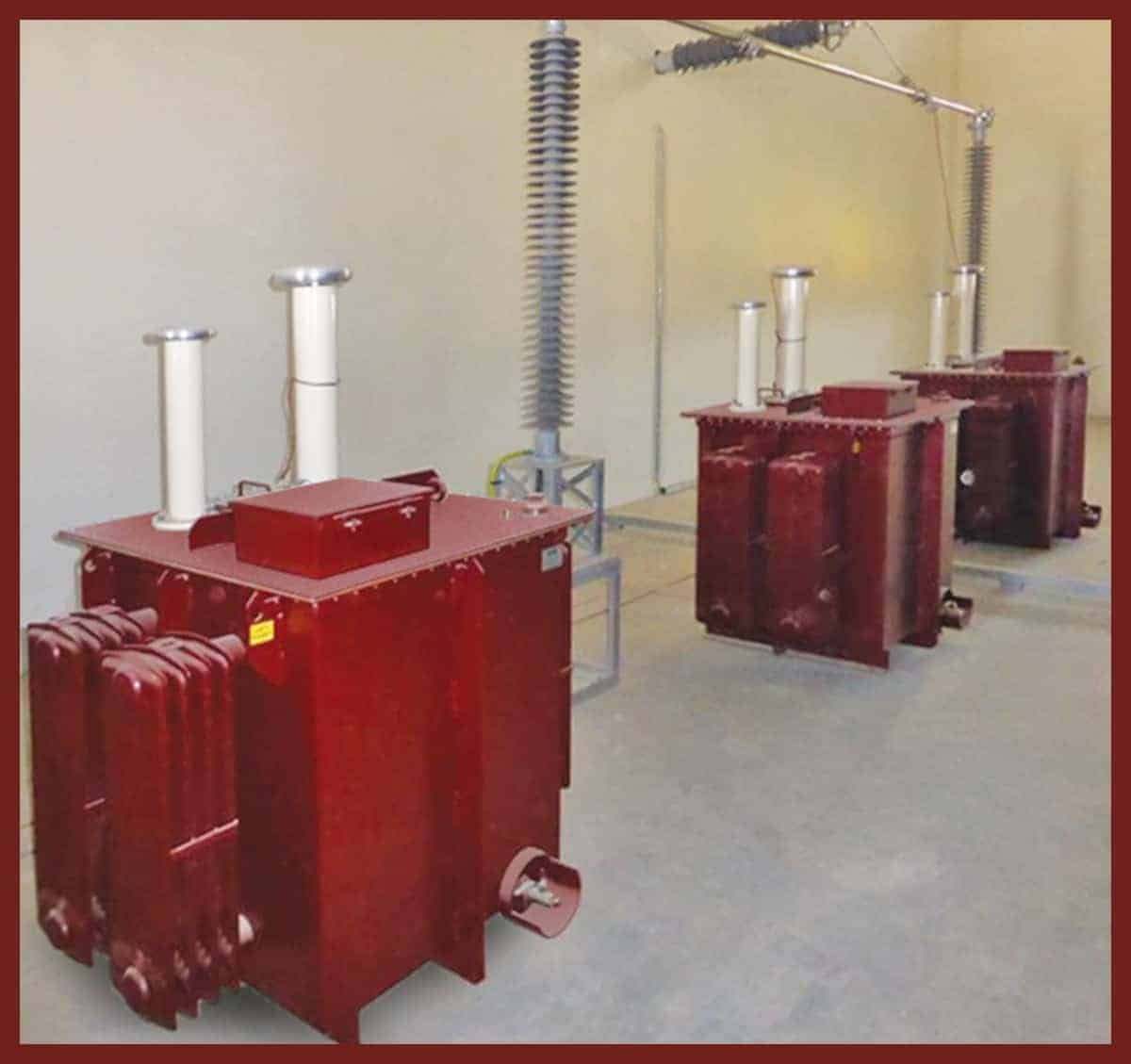

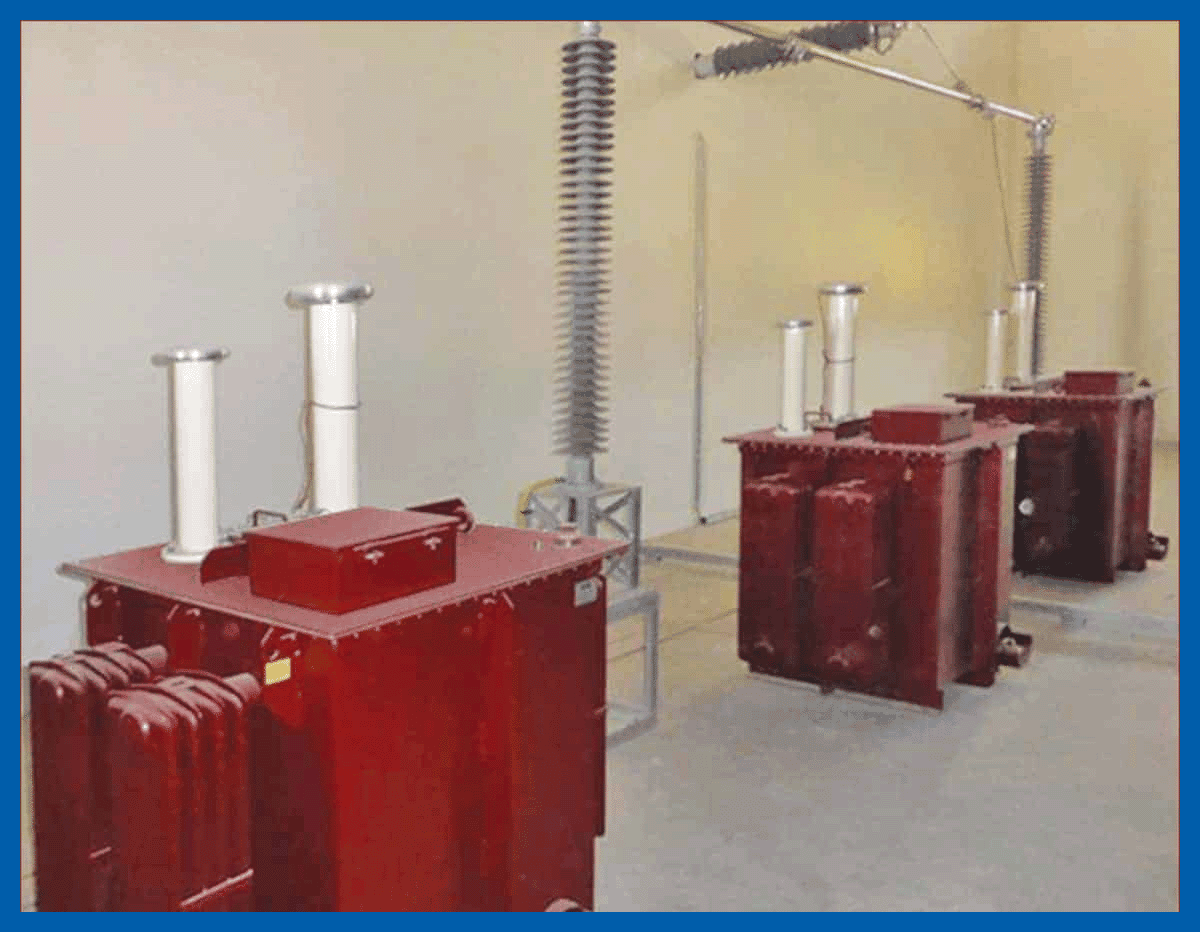

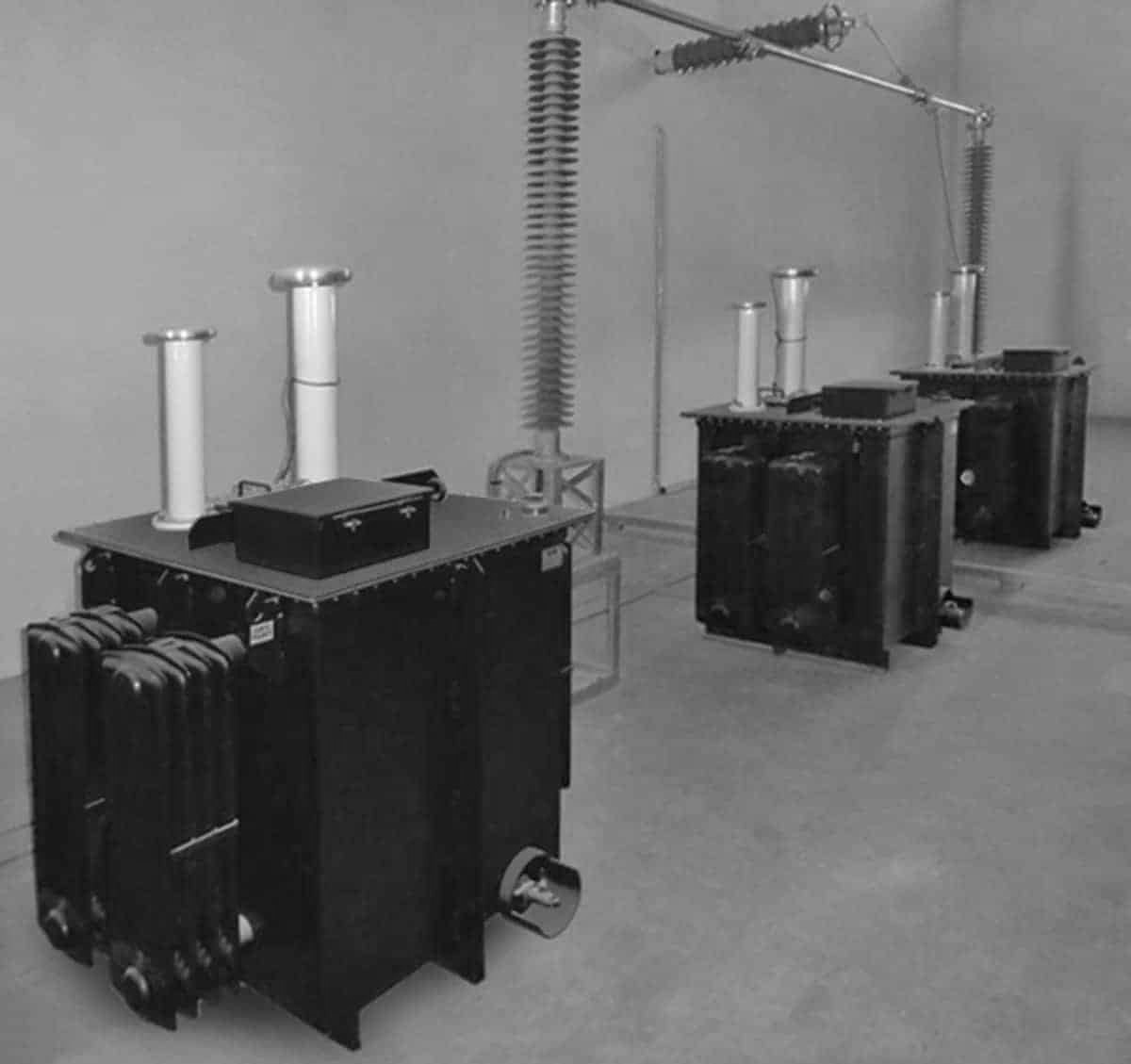

Phenix Technologies provides a variety of Accelerated Aging Test Systems used to accelerate the aging of dielectrics under electrical stress. Applicable standards are HD 605 S2 and ICEA S-94-649-2004. Systems are typically 500 Hz or 1000 Hz with smaller systems successfully implemented up to 3000 Hz. Two types are available; low power systems up to 50 kVA which can be implemented as resonant type systems or conventional transformer type systems which are implemented in conjunction with high voltage compensating reactor and significantly extends the power rating.
Model | Type | Voltage (kV) | Power (kVa) | Compensation Reactors | Number of Reactors | Load (nf) |
RTS8TC35-50-500X | Resonant | 35 | 50 | No | 0 | 13 |
6TC55-250-500X | Transformer | 55 | 250 | No | 0 | 26 |
6TC110-250-500X | Transformer | 110 | 250 | No | 0 | 6.7 |
6TC55-450-500X | Transformer | 55 | 450 | Yes | 1 | 47 |
6TC110-450-500X | Transformer | 110 | 450 | Yes | 1 | 12 |
6TC55-650-500X | Transformer | 55 | 650 | Yes | 2 | 68 |
6TC110-650-500X | Transformer | 110 | 650 | Yes | 2 | 17 |
6TC55-850-500X | Transformer | 55 | 850 | Yes | 3 | 89 |
6TC110-850-500X | Transformer | 110 | 850 | Yes | 3 | 22 |
6TC55-1050-500X | Transformer | 55 | 1050 | Yes | 4 | 110 |
6TC110-1050-500X | Transformer | 110 | 1050 | Yes | 4 | 27 |
