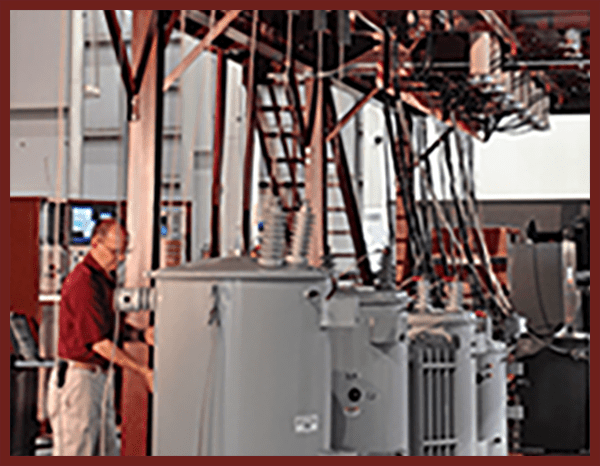

Automated Distribution Class Transformer Factory Test Systems
Multiple test stations for high volume transformer testing
- Multiple test stations for high volume transformer testing. Custom designed for your requirements.
- Complete automation of the test sequence, data collection and report generation
- Capability to test 50 or 60 Hz transformers
- High measurement repeatability
- Low maintenance design utilizing solid state electronic voltage regulators and frequency converters
SYSTEM OVERVIEW
Ensure that a transformer meets performance and reliability requirements, from the production line to after a repair or upgrade, when a major disruptive event occurs such as a lightning strike, or for preventive/predictive maintenance.
Phenix Technologies manufactures a complete line of Transformer Test Systems equipped with the testing capabilities you require.
- Single- and Three-Phase
- Precision Measurement
- Systems with Electronic Power Supply
- Optional system components for additional testing capabilities
- Semi- or Fully-Automated
- High Speed Testing, 200+ transformers per day
- Fully Integrated Data Collection and Reporting System
Perform the following tests on distribution and power transformers in accordance with IEC 60076 and ANSI / IEEE C57.12 standards.
- Excitation Current Measurement
- Impedance Voltage Measurement
- Copper Loss (Load Loss)
- Applied Potential Test
- Winding Resistance Measurement
- Insulation Resistance
- Excitation Loss (No-Load or Core Loss)
- Full Load Current Measurement
- Temperature Measurement (Heat Run)
- Induced Potential Test
- Turns Ratio and Phase Displacement
Optional components for additional testing capabilities:
- AC Hipot (Applied Potential Test)
- MG set (Induced Potential Test)
- Partial Discharge Measurement
- Insulation Resistance Measurement
- Variable Frequency / Electronic Power Supply
- TTR (Winding Ratio Test)
- WRM (Winding Resistance Measurement)
- Capacitive Compensation Bank
- Control Consoles
