DIGITAL LINEAR TRANSDUCERS
Vanguard Digital Linear transducers are designed to precisely measure circuit breaker contact linear motion. Using an optical encoder, the linear transducer can measure distances up to 25” with a 0.01” resolution. Our robust design measures velocity up to 41ft/sec (12.5m/sec).
Neither calibration nor setup is required when this transducer is used with a compatible Vanguard Time Travel Analyzer (DigitMR/CT-7000/CT-8000 CB analyzer family).
Vanguard linear travel transducers are available in 10” (P/N 9087-UC) and 25” (P/N 9088-UC) travel lengths. 30” travel or different lengths of travel are also available up on request.
ALL CIRCUIT BREAKER ACCESSORIES
FEATURES

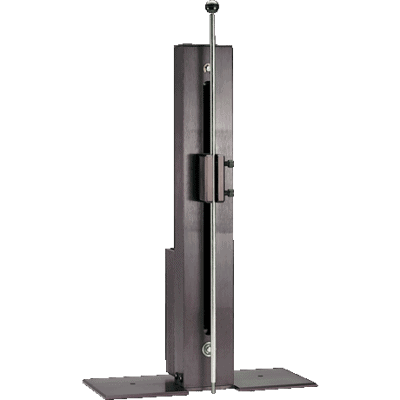

10″ Linear Transducer
- Physical specs: 17” (43.2 cm) L with 10.5” (26.7 cm) x 4.5” (11.4 cm) mounting base
- Physical travel: 0-10 inches max(0 ¬ 25.4 cm max)
- Accuracy: 0.1% of reading ±0.1” (2.54 mm)
- Resolution: ±0.01” (±0.25 mm)
- Velocity: 41 ft/sec (12.5 m/sec)
25″ Linear Transducer
- Physical specs: 31.5”(80 cm) L with 10.5” (26.7 cm) x 4.5” (11.4 cm) mounting base
- Physical travel: 0-25 inches max(0 ¬ 63.5 cm max)
- Accuracy: 0.1% of reading
- Resolution: ±0.1” (2.54 mm)
- Velocity: 41 ft/sec (12.5 m/sec)
CABLES
| Cable | Part Number |
|---|---|
| [8000-0104] Transducer Cable [ 25′ (7.62m) ] | 8000-0104 |
| [8000-0181] Transducer Extension Cable [ 25′ (7.62m) ] | 8000-0181 |
TECH SPECS
| 10″ Linear Transducer | 25″ Linear Transducer | |
| PHYSICAL SPECIFICATIONS | 17″ (43.2 cm) L with 10.5″ (26.7 cm) x 4.5″ (11.4 cm) mounting base | 31.5″ (80 cm) L with 10.5″ (26.7 cm) x 4.5″ (11.4 cm) mounting base |
| PHYSICAL TRAVEL | 0-10 inches max (0-25.4 cm max) |
0-25 inches max (0-25.4 cm max) |
| ACCURACY | 0.1% of reading ±0.1″ (2.54mm) | 0.1% of reading ±0.1″ (2.54mm) |
| RESOLUTION | ±0.01″ (±0.25mm) | ±0.01″ (±0.25mm) |
| VELOCITY | 41 ft/sec (12.5 m/sec) | 41 ft/sec (12.5 m/sec) |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). | ||
PART #s
- 9087-UC [10″ Linear Transducer]
- 9088-UC [25″ Linear Transducer]
