External Amplifiers
High Power Protective Relay Testing
For high power protection testing applications when you need additional current and voltage sources
Choose from Doble’s F6300e and F6350e External Amplifiers for your specific protection testing needs and requirements.
These amplifiers are useful in high power protection testing applications when you need additional current and/or voltage sources, for critical high burden relay testing, as well as system modeling.
When used in combination with Doble’s Protection Suite software, you will have the ultimate flexibility to test complex schemes. These amplifiers also offer the industry’s most current sources in one piece of equipment.
F6300e
- 12 enhanced current sources for running high burden and amplitude faults (12 x 35 A, 12 x 131.25 VA/131.25 W)
- Battery Simulator
- Test bus power system models up to six current nodes
- Works with Doble Protection Suite or third party software
- Configure up to 16 external amplifiers for 192 sources when using Doble F6 configurator software
- Robust design suitable for laboratory and field testing applications
- Multiple sources in one amplifier reduce the number of boxes needed for testing

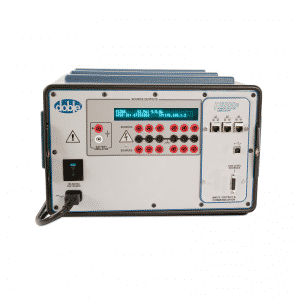

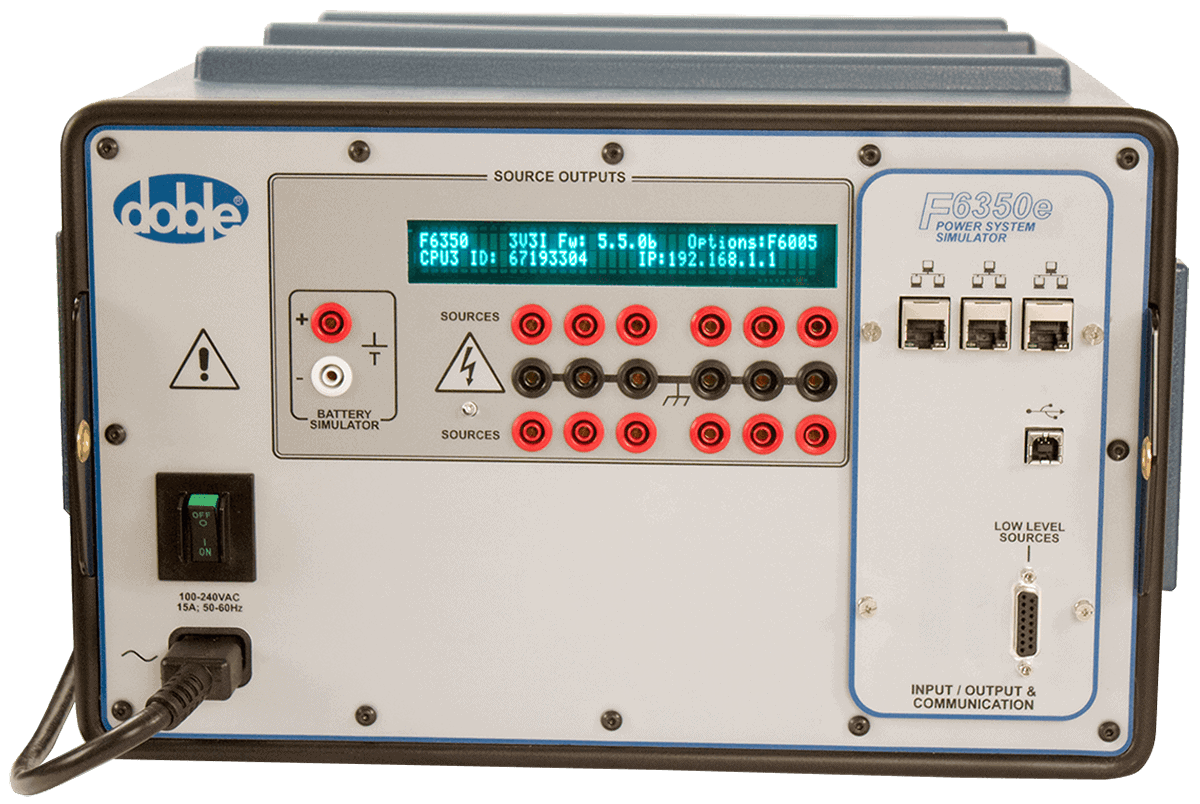

F6350e
- 12 sources for running high burden and amplitude faults
- 6 Voltages, 6 Enhanced Currents (6 x 35 A, 6 x 131.25 VA/131.25 W)
- Battery Simulator
- Works with Doble Protection Suite or third party software
- Configure up to 16 external amplifiers for 192 sources when using Doble F6 configurator software
- The industry’s most current sources in one amplifier
- Your F6150e/sv can function as an F6350e amplifier with a simple switch within the firmware (option F6351) so you can easily switch between test set and amplifier through software settings
