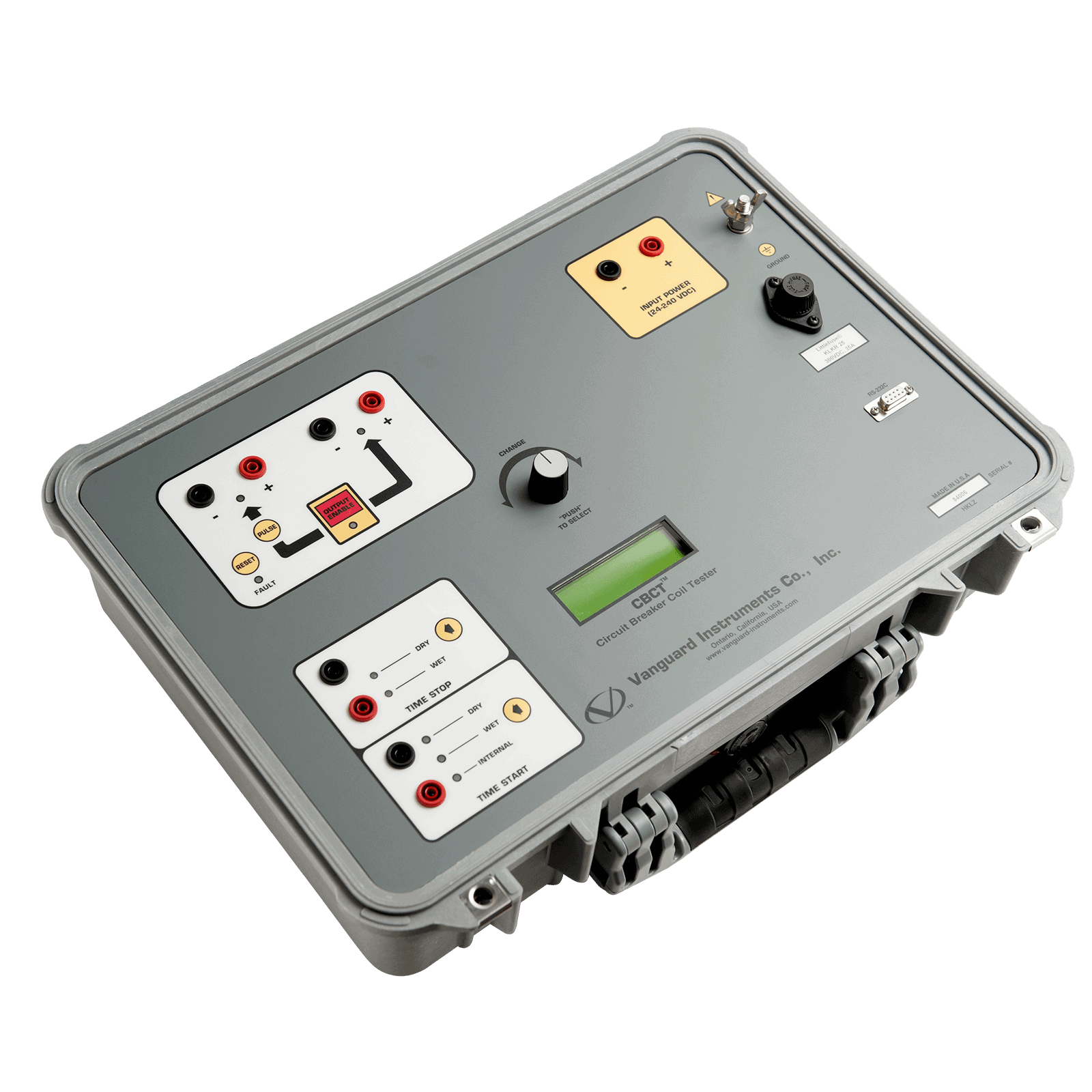

CBCT
Programmable DC power supply
The CBCT is a variable voltage DC power supply designed specifically to test substation circuit-breaker Open and Close coils. The CBCT uses the substation’s DC power supply to electronically generate a programmable output voltage from 5% to 95% of the source voltage. The CBCT can maintain up to an 80A test current while maintaining 2% or better voltage regulation during the circuit breaker coil operation.
ALL VANGUARD CIRCUIT BREAKER POWER SUPPLIES
FEATURES
- One continuous and one pulse DC output
- Back-lit LCD screen (20 characters by 4 lines)
- Output voltage programmable from 5% to 95% of the input voltage
- Built-in, single channel timer
TECH SPECS
| TYPE | Programmable DC Power Supply |
| PHYSICAL SPECIFICATIONS | 19”W x 7”H x 15”D, (48 cm x 17 cm x 38 cm); Weight: 25 lbs (11.3 kg) |
| INPUT VOLTAGE | 20 – 300 Vdc, 20A fuse |
| OUTPUT VOLTAGE | 5% – 95% of input voltage with 2% regulation at max current (up to 80A) |
| OUTPUT VOLTAGE CHANNELS | One continuous and one pulse DC output |
| OUTPUT VOLTAGE PROTECTION | Shutdown if current exceeds 80A or if current drawing time exceeds 500 ms @ 80A |
| VOLT METER RANGE | Input/output meters, 0 – 300 Vdc; Accuracy: 1% of reading, ±0.2V |
| TIMER DISPLAY RANGE | 0.0000 – 999.999 seconds; Accuracy: 0.01%, ±0.5 ms |
| TIMER START INPUT | Internal (coil initiation), wet-contact input (20 – 240 Vac/dc), or dry-contact input (1 – 200 ohms) |
| TIMER STOP INPUT | Wet-contact (20 – 240 Vac/dc) or dry-contact (1 – 200 ohms) |
| DISPLAY | Back-lit LCD screen (20 characters by 4 lines); viewable in both bright sunlight and low-light levels |
| SAFETY | Designed to meet UL 6101A-1 and CAN/CSA C22.2 No 1010.1-92 standards |
| ENVIRONMENT | Operating: -10°C to 50°C (+15°F to +122°F); Storage: -30°C to70°C (-22°F to +158°F) |
| CABLES | Two 6-foot (#8 AWG) DC cable sets, Two 10-foot timer cable sets, One ground cable, one cable bag |
| OPTIONS | Transportation case |
| WARRANTY | One year on parts and labor |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). Last updated on March 13, 2009 |
|
PART #s
- 9063-CT
