Variable Inductance AC Resonant Test Systems, Tank Type, Up to 500 kV
Power cable testing

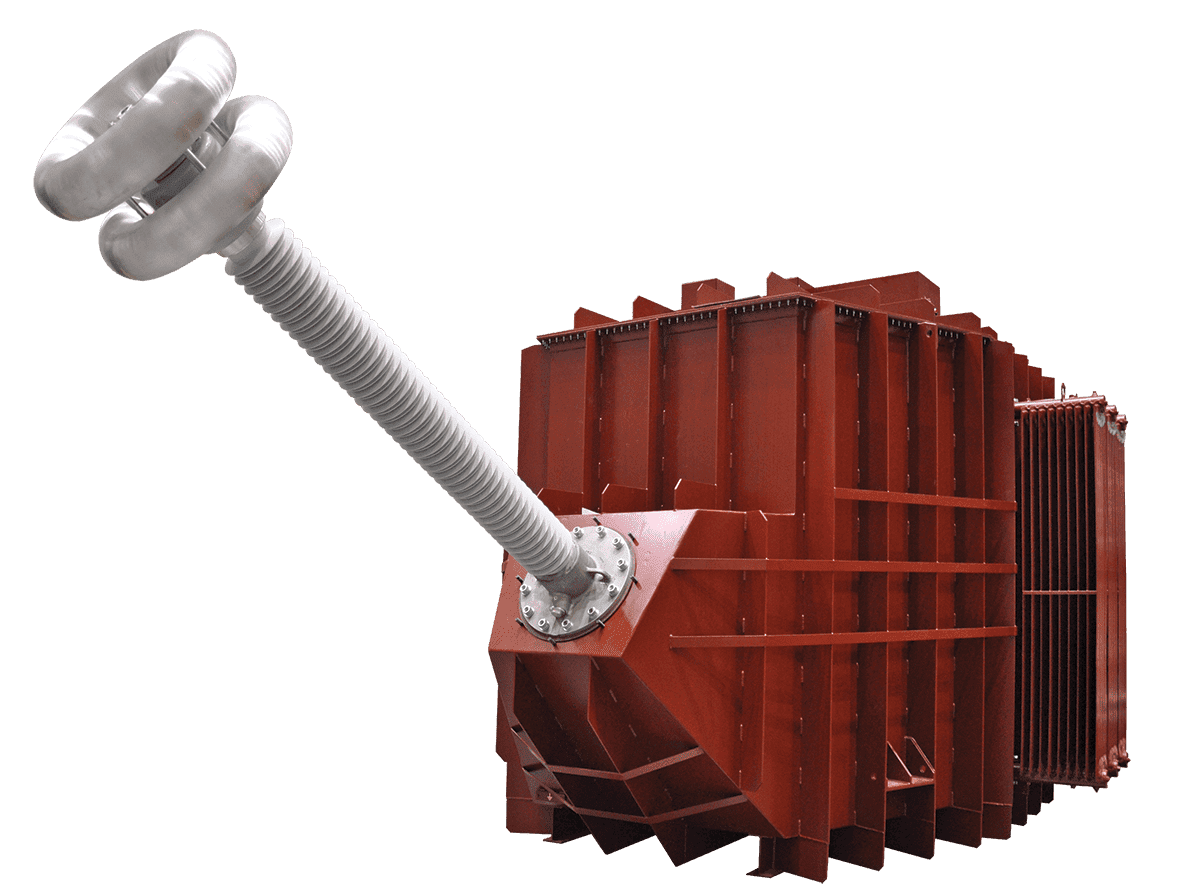

These high-power high voltage AC Resonant Test Systems are used where the load is largely capacitive with very low real power losses, primarily used for testing power cables. Steel grounded “dead” tank design is potential free.
SYSTEMS OVERVIEW
AC Resonant Test Systems
AC Resonant Test Systems are especially valuable in any application where the load is largely capacitive with low loss such as power cables, gas-insulated switch gear, capacitors, generator windings, and dry testing of insulators.
Phenix Technologies produces several configurations of variable voltage AC Resonant Test Systems and offers options to add significant testing capabilities. Our designs meet your testing requirements, space, and environmental conditions.
Phenix Technologies offers:
- Ratings from 15 kV to over 2 million Volts, 50 or 60 Hz
- Variable Inductance systems and Variable
- Frequency systems from 20 to 300 Hz
- High Q ratings for low input current requirements
- Dead Tank and Insulated Cylinder designs
- Series and Parallel Resonance configurations
- Computerized-assisted controls with user-friendly software
- Stand-alone systems for factory/laboratory use
- Transportable, skid- or truck-mounted for outdoor use
MODELS
HV Tank Type Reactors up to 500 kV
(Sizes and weights are approximate for standard designs and may vary with custom orders)
| Model | VOLTAGE | Max kVA | Length (m) | Width (m) | Height (m) | Weight (tons) | |||
| Tap 1 (kV) | Tap 1 (kV) | Tap 1 (kV) | Tap 1 (kV) | ||||||
| 8TC250-5000 Load 50 Hz Load 60 Hz |
250 kV | 150 kV | 100 kV | Optional | 5000 | 5.2 | 3.3 | 3.5 | 22.5 |
| 255 nF | 707 nF | 1590 nF | N/A | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 210 nF | 590 nF | 1325 nF | N/A | ||||||
| 8TC350-7000 Load 50 Hz Load 60 Hz |
350 kV | 230 kV | 150 kV | 100 kV | 7000 | 6.9 | 3.1 | 3.3 | 28.5 |
| 180 nF | 420 nF | 990 nF | 2230 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 150 nF | 350 nF | 825 nF | 1855 nF | ||||||
| 8TC350-11000 Load 50 Hz Load 60 Hz |
350 kV | 230 kV | 150 kV | 100 kV* | 11000 | 7.0 | 3.5 | 3.3 | 36.5 |
| 285 nF | 660 nF | 1555 nF | 2385 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 235 nF | 550 nF | 1295 nF | 1990 nF | ||||||
| 8TC350-14000 Load 50 Hz Load 60 Hz |
350 kV | 230 kV | 150 kV* | 100 kV* | 14000 | 7.1 | 3.8 | 3.3 | 38.5 |
| 365 nF | 840 nF | 1590 nF | 2385 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 300 nF | 700 nF | 1325 nF | 1990 nF | ||||||
| 8TC400-11000 Load 50 Hz Load 60 Hz |
400 kV | 230 kV | 150 kV | 100 kV* | 11000 | 7.5 | 3.5 | 3.5 | 38.5 |
| 215 nF | 660 nF | 1555 nF | 2385 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 180 nF | 550 nF | 1295 nF | 1990 nF | ||||||
| 8TC400-14000 Load 50 Hz Load 60 Hz |
400 kV | 230 kV | 150 kV* | 100 kV* | 14000 | 7.5 | 3.5 | 3.5 | 40.5 |
| 275 nF | 840 nF | 1590 nF | 2385 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 230 nF | 700 nF | 1325 nF | 1990 nF | ||||||
| 8TC500-11000 Load 50 Hz Load 60 Hz |
500 kV | 350 kV | 230 kV | 150 kV | 11000 | 9.5 | 5.0 | 5.5 | 67.0 |
| 140 nF | 285 nF | 660 nF | 1555 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 115 nF | 235 nF | 550 nF | 1295 nF | ||||||
| 8TC500-14000 Load 50 Hz Load 60 Hz |
500 kV | 350 kV | 230 kV | 150 kV* | 14000 | 10.2 | 5.1 | 5.5 | 70.5 |
| 175 nF | 365 nF | 840 nF | 1590 nF | Duty Cycle 1 Hour On / 1 Hour Off, 6 Cycles per Day |
|||||
| 145 nF | 300 nF | 700 nF | 1325 nF | ||||||
* Current Limited Tap
** Load Indication does not include Divider Capacitances
ALL AC RESONANT TEST SYSTEMS
