660-10PA
AC Vacuum Interrupter Test Set
Model 660-10PA
- Ruggedly constructed for years of field use
- Units feature easy to read digital instrumentation, efficient controls, and lightweight resin cast transformers
- Simple set-up and operation
- ISO17025 calibration upon request
OVERVIEW
Testing Applications
- Test vacuum interrupters in accordance with ANSI/IEEE C37.60 and IEC 62271 standards
- Can also be used for testing breakers, switchgear and many other apparatus
Design

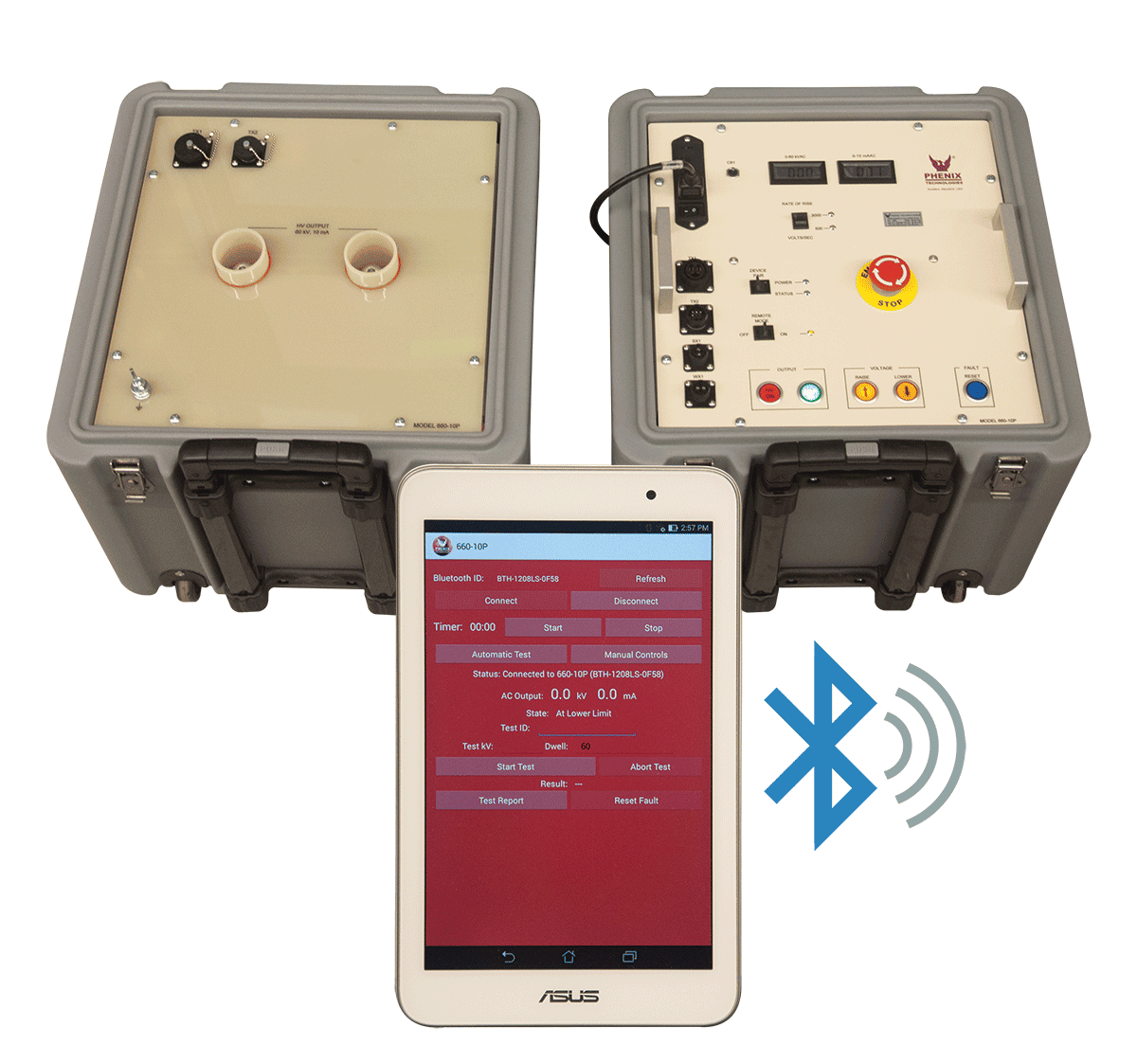

- 2-piece design
- Center-tapped high voltage transformer
- High voltage On/Off pushbuttons with indicator
- Automated or Manual control of output voltage
- Remote control via Bluetooth connection (Android tablet and software included)
- Test report generation and test data storage
- Safety foot switch with 10’ cable
- Shielded high voltage output cables with plug-in connectors
- Selectable rate of rise, 500 and 3000 volts per second
- Emergency Off pushbutton
- Slow and fast-acting transient protection on all meters and relays
- Failure indicator with reset switch
- Digital, direct-reading output voltmeter with memory feature
- Digital, direct-reading output currentmeter
- 120 or 220 V input, customer selectable
- External interlock provision
- Warning circuit
- Wheeled case for easy mobility
- Heavy duty canvas bag for cable storage
OPTIONS
Options
- Custom cable lengths available
- Printer with Bluetooth, rechargeable battery
- ISO17025 calibration
ENVIRONMENTAL
Environmental Operating Conditions
- 10-40°C, indoor/outdoor in fair weather
- Humidity <95% non-condensing
- Altitude <3300 ft (1000 meters)
