Automated Dielectric Breakdown Test Set for Insulating Materials (D149)
Designed to measure dielectric breakdown and dielectric strength of a wide range of solid electrical insulating materials, at commercial power frequencies, within the ASTM D149 and IEC 60243-1 standards as well as other comparable international standards.
- Standard output voltages up to 100 kV AC and DC
- Selectable automatic or manual operating modes
- Test chamber with safety interlock, stress relief shielding, and transparent door
- Wide variety of test fixtures with electrodes
- Hot and cold oil baths

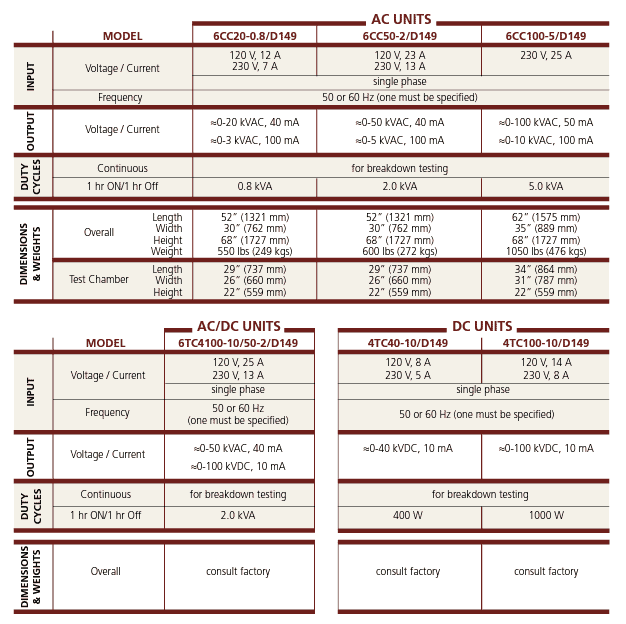

| AC Models | Output Range |
| 6CC20-0.8/D149 | ≈0-20 kVAC, 40 mA ≈0-3 kVAC, 100 mA |
| 6CC50-2/D149 | ≈0-50 kVAC, 40 mA ≈0-5 kVAC, 100 mA |
| 6CC100-5/D149 | ≈0-100 kVAC, 50 mA ≈0-10 kVAC, 100 mA |
| AC/DC Models | Output Range |
| 6TC4100-10/50-2/D149 | ≈0-50 kVAC, 40 mA ≈0-100 kVDC, 10 mA |
| DC Models Output Range | Output Range |
| 4TC40-10/D149 | ≈0-40 kVDC, 10 mAA |
| 4TC100-10/D149 | ≈0-100 kVDC, 10 mA |
TESTING APPLICATIONS
Designed to measure dielectric breakdown and dielectric strength of a wide range of solid electrical insulating materials, at commercial power frequencies, within the ASTM D149 and IEC 60243-1 standards as well as other comparable international standards.
MODELS AVAILABLE
- 6CC20-0.8/D149
- 6CC50-2/D149
- 6CC100-5/D149
- 6TC4100-10/50-2/D149
- 4TC40-10/D149
- 4TC100-10/D149
Standard output voltages up to 100 kV AC and DC | Rugged, mobile steel cabinet | Integrated test chamber
SAFETY AND DESIGN FEATURES
- Programmable Logic Controller and Operator Terminal utilized to control all aspects of test sequences
- Selectable automatic or manual operating modes
- Programmable rate of rise
- Over-voltage preset
- Peak-reading memory voltmeter
- Circuit breaker protection
- Test chamber with safety interlock, stress relief shielding, and transparent door
- Fast-acting as well as thermal overload protection
- Over-current trip point is adjustable from 10% to 110% of rated output current
- Rugged steel cabinet with durable painted finish
- Casters for ease of mobility
- Writing shelf on front of cabinet
- Fork lifting provisions
- Two copies of operation/maintenance manual
600C SERIES CONTROLS
- Auto-ranging display of voltage and current. Accuracy of ±0.8% of reading + 0.2% of range +LSD.
- Failure memory voltmeter function
- Auto-voltage, over-voltage, and over-current setpoint
- Stop watch, duration, dwell timer functions
- Auto-step and auto-cycle functions
- Motorized regulator
- Variable ramp rate (desired rate of rise may be entered)
- Ethernet port
- Graphic display
SOFTWARE PACKAGE
Specific test parameters can be entered or previous test files or “recipes” can be recalled for easy test duplication.
Test results are graphically displayed to pin-point real-time voltage, current, dwell, and duration characteristics.
Results can be stored in a variety of configurations. (Computer is not included.)
TEST FIXTURES
