TDR900
Circuit Breaker Test System
Performs timing for up to 4 breaks per phase w/motion measurements for any circuit breaker

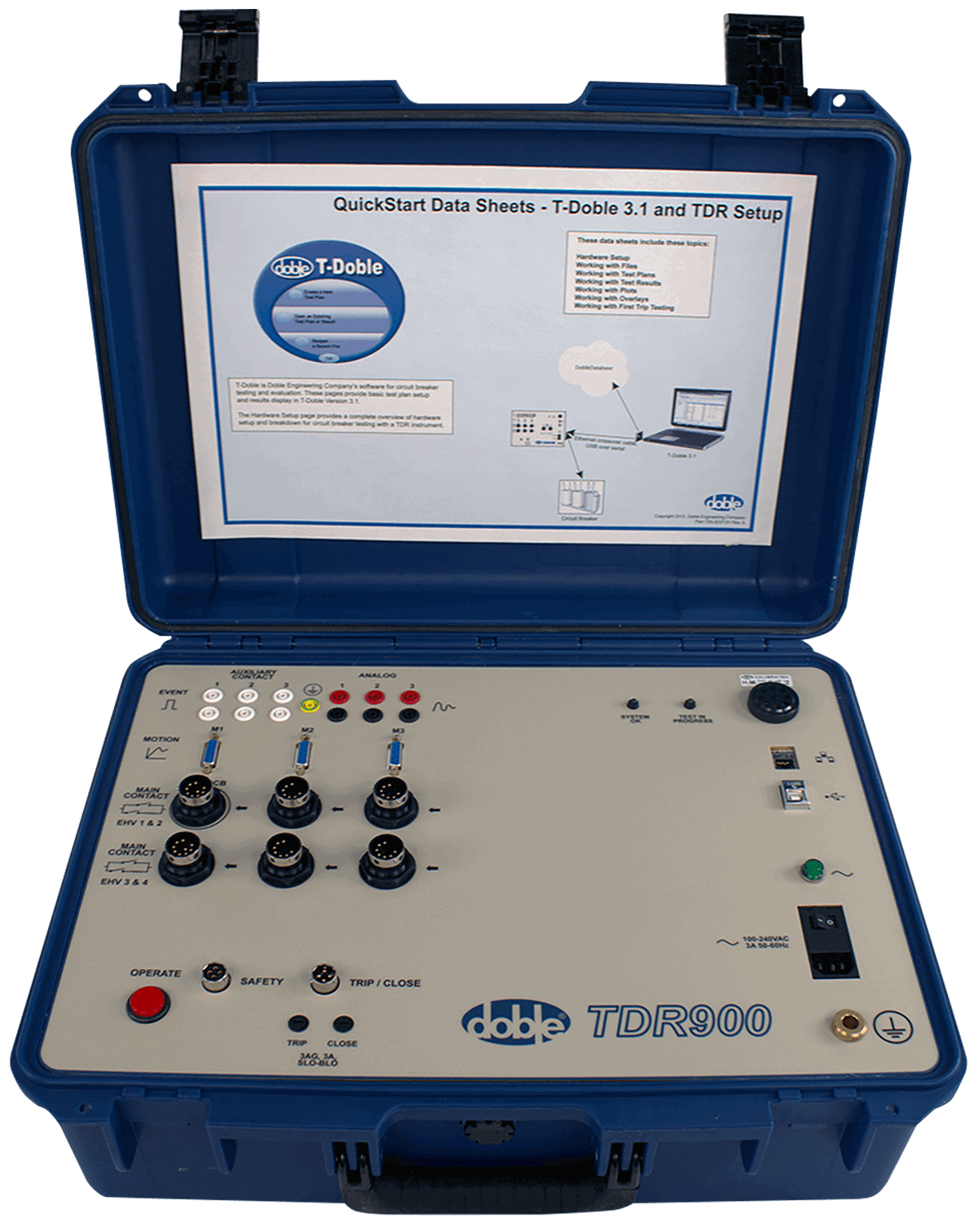

The Doble TDR900 is your entry-level, portable circuit breaker test set.
It operates and records a circuit breaker’s contact timing, motion, velocity, main contact engagement & synchronization, trip and close coil initiation and currents.
Use the TDR900 circuit breaker test set to verify control circuit, check motion of moving parts, validate time of operation and demonstrate results of circuit breaker maintenance.
FEATURES & BENEFITS
- Monitor breakers with up to 4 breaks per phase with motion measurements
- Detect main and pre-insertion resistor engagement and timing on all 12 channels
- Record up to three analog and three digital customer definable parameters
- Create and manage custom circuit breaker test plans with T-Doble software
- Measure additional parameters in the mechanism cabinet using Doble or 3rd party transducers
- Know that your breakers can and will perform when they are needed
- Easily detect main contact and resistor contact timing errors
- Control with a Doble Universal Controller (DUC), tablet or PC
SOFTWARE
T-Doble Software
- Control and operate your TDR900 to make and compare breaker timing measurements, validate time of operation, and verify manufacturer specifications
- Operate, record and maintain specified tests and their respective files
- Create and manage circuit breaker test plans
- Plot, overlay, analyze and print data
- Maintain test plan library for families of circuit breakers and associated mechanisms
