CT-8000 S3
Advanced Digital Circuit Breaker Analyzer with Integral 200 A Source
Fully analyze a circuit breaker's performance
The CT-8000 S3 is Vanguard's fourth generation EHV circuit breaker analyzer. The CT-8000 S3 is available with 3 (part number 9103-UC) or 6 contact timing channels (part number 9104-UC). The CT-8000 S3 can fully analyze a circuit breaker's performance by measuring the main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes. Also, an outstanding feature of the CT-8000 S3 is the ability to perform dynamic resistance tests on circuit breaker contacts. CT-8000 S3 is also capable of performing dual side grounded tests on circuit breakers, enhancing safety and accuracy by grounding both sides of the apparatus during testing and helps to reduce test set up time.
UPCOMING EVENT
ALL VANGUARD CIRCUIT BREAKER ANALYZERS
FEATURES
- Fully analyze circuit breaker’s performance by measuring main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes
- Perform dynamic contact resistance test
- USB computer interface
- USB Flash drive interface (Flash drive not included)
- Store up to 200 test records and 100 test plans internally
- Initiate Breaker Operation
- Built-in 4.5″ wide Thermal Printer
- Rugged “QWERTY” style membrane keypad
- Optional “On-line” Timing Mode
- Optional dual ground testing mode
- Optional Bluetooth wireless computer interface
CABLES
| [8000-0005] USB Cable [ 6′ (1.83m) ] | 8000-0005 |

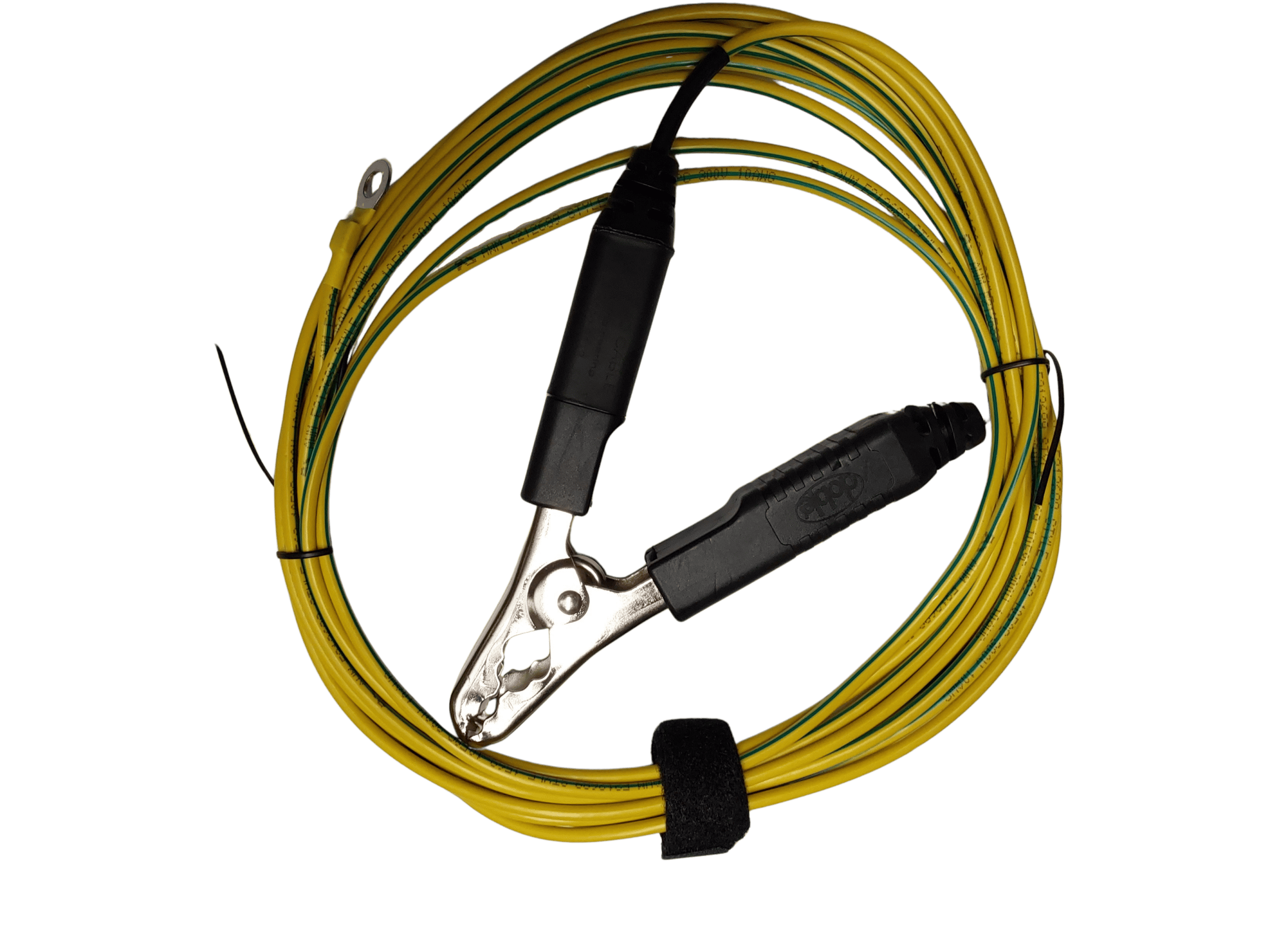

| [8000-0016] Power + Ground Combination Cable | 8000-0016 |
| [8000-0097] Contact Extension Cable [ 30′ (9.14m) ] | 8000-0097 |
| [8000-0099] Initiate Cable [ 22′ (6.71m) ] | 8000-0099 |
| [8000-0101] Test Lead (Trigger, V1, V2) [ 2′ (0.61m) ] | 8000-0101 |
| [8000-0102] Analog Transducer Cable | 8000-0102 |
| [8000-0104] Transducer Cable [ 25′ (7.62m) ] | 8000-0104 |
| [8000-0174] CT-7000 S3/8000 S3 Contact Cable (4 pin, 20′) | 8000-0174 |
| [8000-0175] CT-7000 S3/8000 S3 Contact Extension Cable (4 pin, 30′) | 8000-0175 |
| [8000-0213] CT-8000 S3 Current/Sense Cable Set | 8000-0213 |
TECH SPECS
| TYPE | Portable circuit-breaker analyzer |
| PHYSICAL SPECIFICATIONS | 16”W x 11”H x 14”D (40.6 cm x 29.9 cm x 35.6 cm); Weight: 22 lbs (9.98 kg) |
| INPUT POWER | 100-240Vac, 10A, 50/60Hz |
| DRY-CONTACT INPUTS | 3 channels (9103-UC) or 6 channels (9104-UC). Channel can detect the main contact and resistor contact time. |
| TIMING WINDOWS | 1 second, 10 seconds, or 20 seconds |
| TIMING RESOLUTIONS | ±50 micro-seconds @ 1 sec. duration, ±500 micro-seconds @ 10 sec. duration, ±1.0 milli-seconds @ 20 sec. duration |
| TIMING ACCURACY | 0.05% of reading ±0.05 ms @ 1 second duration |
| DRY-CONTACT CHANNEL PROTECTION | All contact inputs are grounded until test. Input channels are also protected against static discharge. |
| DRY-CONTACT DETECTION RANGE | Closed: Less than 20 Ohm. Opened: greater than 5000 ohm |
| INSERTION RESISTOR DETECTION RANGE | 50 – 5,000 ohms |
| TRIGGER INPUT VOLTAGE | Open/Close trigger voltage: 24 V – 300V DC or peak AC |
| VOLTAGE SENSING INPUT RANGE | V1: analog input; 0 – 250 V DC or peak AC; sensitivity ±1 V; record and print voltage level V2 and V3: voltage presence/absence detector input; 24 – 255 V DC or peak AC; record and print 3 timing events |
| BREAKER OPERATIONS | Initiate Open, Close, Open-Close, Close-Open, Open-Close-Open |
| BREAKER INITIATE CAPACITY | 30A, 250 Vac/dc max |
| INITIATE CURRENT READING RANGE | one, non-contact, Hall-effect sensor, 0 – 20 amp range, dc to 5 Khz AC |
| DIGITAL TRAVEL TRANSDUCER INPUTS | 3 digital travel transducer channels; linear range: 0.0 – 60.0 in (±0.01 in) rotary range: 0 – 360 degrees (±0.36 degrees) |
| RESISTOR TYPE TRANSDUCER INPUTS | 3 channels, 200 ohm – 10K ohms |
| CONTACT TRAVEL POINT DIFFERENCE | measures “slow-close” contact-point distances; results can be printed |
| DYNAMIC/STATIC RESISTANCE RANGE | 0.1 – 1,999 micro-ohms; accuracy: ±2% of reading, ±5 micro-ohms |
| RESISTANCE TEST CURRENT | 200 amperes max |
| DISPLAY | back-lit LCD screen (128 x 240 pixels); viewable in bright sunlight and low light |
| PRINTER | built-in 4.5” wide thermal printer that can print both graphic contact travel waveforms and tabulated test results |
| INTERNAL TEST RECORD STORAGE | Store upt to 200 test records and 100 test plans |
| EXTERNAL TEST RECORD STORAGE | USB Flash drive interface for external storage of test records and test plans |
| COMPUTER INTERFACES | One USB port, optional Bluetooth wireless interface |
| PC SOFTWARE | Windows® based Breaker Analysis software included with purchase price |
| CABLES | furnished with full set of test leads |
| OPTIONS | transportation cases (available for the CT-8000 S3 and travel transducers), on-line timing mode, dual ground testing mode, bluetooth interface |
| SAFETY | designed to meet UL 6101A-1 and CAN/CSA C22.2 No 1010.1-92 standards |
| ENVIRONMENT | Operating: -10°C to +50°C (+15°F to +122°F); Storage: -30°C to +70°C (-22°F to +158°F) |
| HUMIDITY | 90% RH @ 40°C (104°F) non-condensing |
| ALTITUDE | 2,000 m (6,562 ft) to full safety specifi cations |
| WARRANTY | one year on parts and labor |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). | |
| OPTIONAL TESTING FEATURES | |
| ON-LINE TIMING MODE | |
| ON-LINE CURRENT SENSOR | three non-contact AC current sensors, range 0-100 amperes |
| ON-LINE DC CURRENT SENSOR | one non-contact DC current sensor, range 0-20 amperes |
| DUAL GROUND TIMING MODE | |
| DUAL GROUND CLAMP-ON PROBES | 3 non-contact clamp-on probes |
PART #s
- 9103-UC [CT-8000 S3 with 3 Contact Channels]
- 9104-UC [CT-8000 S3 with 6 Contact Channels]
- 9103-SC [CT-8000 S3 Shipping Case]
- 9103-DG [CT-8000 S3 Dual Ground Option]
- 9103-BT [CT-8000 S3 Bluetooth Option]
- 9103-OT [CT-8000 S3 Online Timing Option]
